GivEnergy EV Charger and Home Assistant using the Cloud API

October 14th, 2023
YouTube video

My preferred way to keep an eye on all of my smart devices is by using Home Assistant and in this article Iโ€™m going to show you how to get the GivEnergy EV charger connected to Home Assistant using GivEnergyโ€™s cloud API.

At the time of putting together this article, local control of the GivEnergy EV charger using the GivTCP add-on is still under development so I put together a workaround that uses the GivEnergy cloud API to monitor and control it instead from Home Assistant. So rather than Home Assistant talking directly to the charger over your local network, this method requires an internet connection because Home Assistant will talk to GivEnergyโ€™s servers, and those servers will communicate with your charger.

Step 1: Obtain a GivEnergy API Token

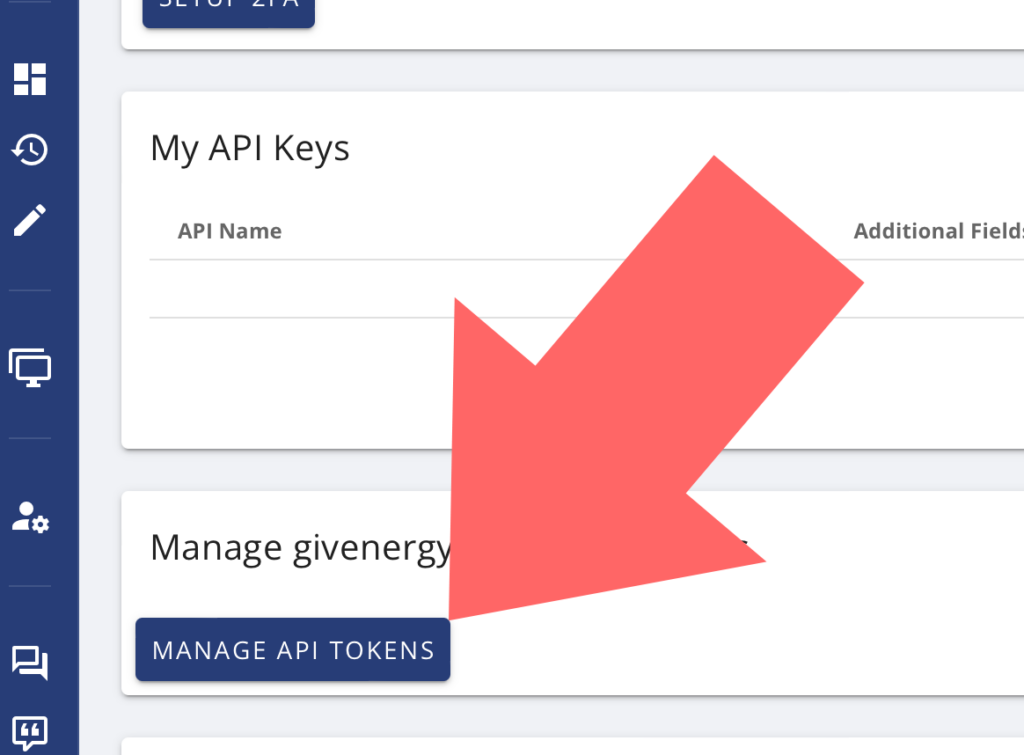

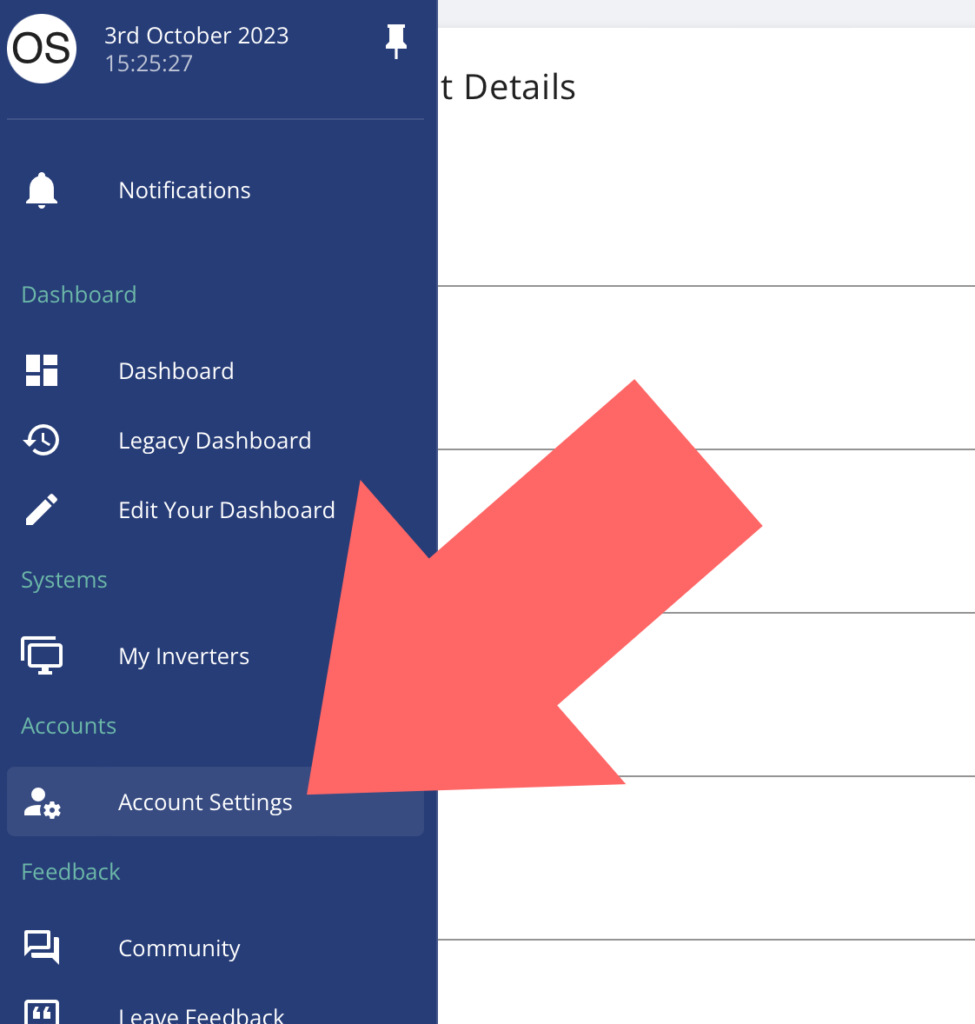

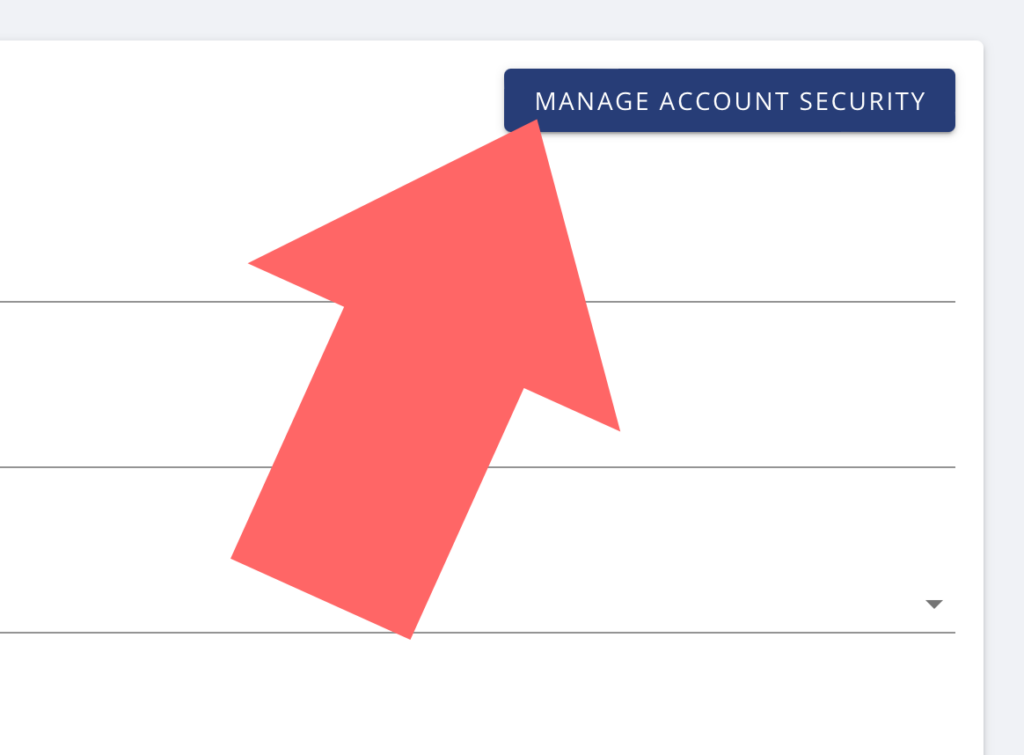

Log in to the GivEnergy portal (https://givenergy.cloud). From the menu on the left-hand side choose the option named “Account Settings”. From the account settings page, click the “Manage Account Security” button in the top-right corner. Scroll down the page and click on the button labelled “Manage API Tokens”.

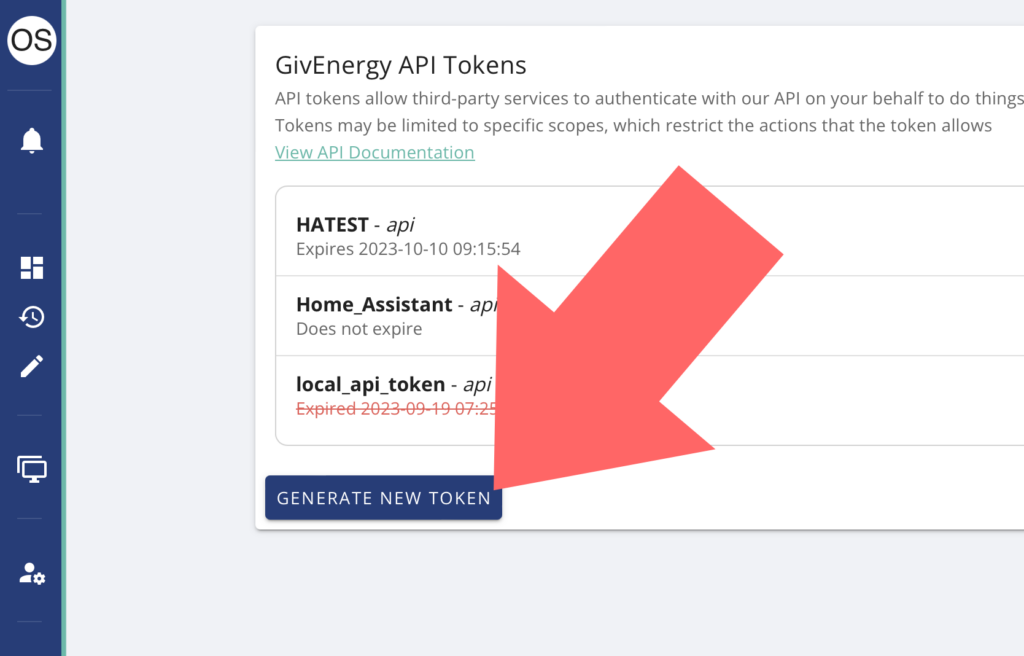

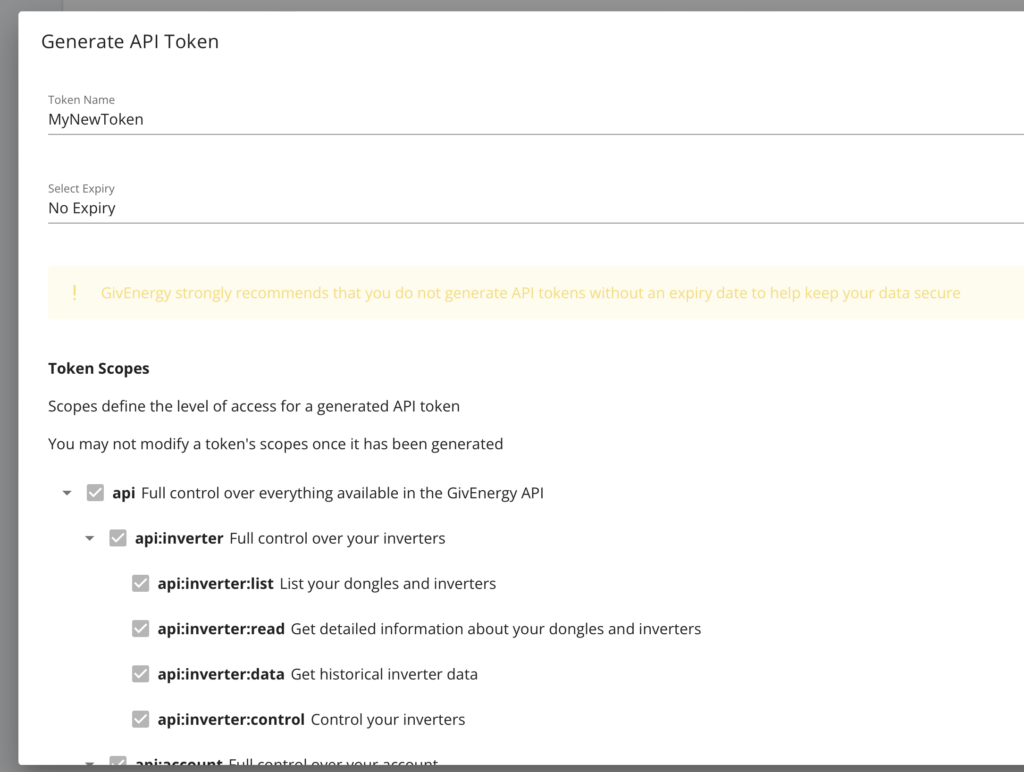

Click on the button to “Generate New Token” and on the Generate API Token page start by giving your token a user-friendly name (so you know what this is for). You then need to set an expiry timescale for your token. You can set it to No Expiry, or for increased security you can set an expiry timescale but keep in mind that if your token expires, you will need to generate a new one and reconfigure Home Assistant.

You must also choose the scope for your token. You can give your token permission to do absolutely anything it likes, or you can choose to specifically give it just permissions to read/write data connected with your EV charger. When you’ve done, scroll to the bottom of the page and click on the ‘Create Token’ button.

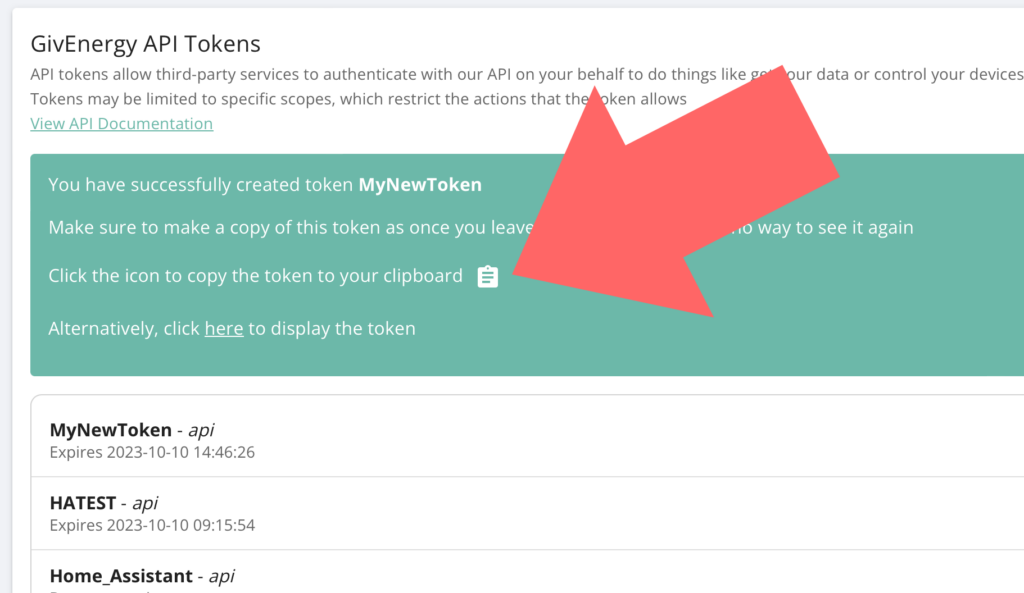

Once created, you’ll be asked to copy your token to the clipboard, or view it. Whichever you choose, make sure you save it somewhere safe for later because it will never be shown to you again. If you lose the token, your only option will be to create a new one.

Step 2: Edit secrets.yaml

We need to start editing your Home Assistant configuration files. If you know what you’re doing here then great… otherwise I suggest installing the File Editor add-on.

Find the file named /homeassistant/secrets.yaml. Add a new line into it as follows, replacing YOUR_API_KEY with the token generated in the previous step. Note that there are quotes around it, and keep the word Bearer as it’s part of the authorisation string.

givenergy_apikey: "Bearer YOUR_API_KEY"

Step 3: Edit configuration.yaml

Locate the file named /homeassistant/configuration.yaml. If you have already edited this file and have custom sections for things like ‘rest’, ‘rest_command’, ‘switch’ or ‘template’ then you will need to manually fit the following configuration into the relevant sections as appropriate, otherwise if you’re starting with a reasonably clean installation of Home Assistant then you should be able to paste this as is at the end of the file:

If you’d like to say thank you, please consider donating to help support the site and YouTube channel. All donations are really appreciated, but of course totally optional!

Buy Me A Coffee
rest:
  - resource_template: 'https://api.givenergy.cloud/v1/ev-charger?page=1'
    scan_interval: 15
    headers:
      Authorization: !secret givenergy_apikey
      Accept: "application/json"
      Content-Type: "application/json"
    sensor:
      - name: "GivEnergy EV Status"
        unique_id: givenergy_ev_status
        value_template: '{{ value_json.data[0].status }}'
      - name: "GivEnergy EV UUID"
        unique_id: givenergy_ev_uuid
        value_template: '{{ value_json.data[0].uuid }}'
      - name: "GivEnergy EV Power"
        unique_id: givenergy_ev_power
        value_template: >-
            {% if value_json.data[0].power_now is defined %}
              {{ value_json.data[0].power_now.value }}
            {% else %}
              0
            {% endif %}
        device_class: 'power'
        state_class: 'measurement'
        unit_of_measurement: 'kW'
      - name: "GivEnergy EV Power (watts)"
        unique_id: givenergy_ev_power_watts
        value_template: >-
            {% if value_json.data[0].power_now is defined %}
              {{ ((value_json.data[0].power_now.value)|float * 1000)|int }}
            {% else %}
              0
            {% endif %}
        device_class: 'power'
        state_class: 'measurement'
        unit_of_measurement: 'W'

  - resource_template: 'https://api.givenergy.cloud/v1/ev-charger/{{ states("sensor.givenergy_ev_uuid") }}/meter-data?start_time={{ (utcnow() - timedelta( minutes = 1 )).strftime("%Y-%m-%dT%H:%M:%SZ") }}&end_time={{ utcnow().strftime("%Y-%m-%dT%H:%M:%SZ") }}&measurands[]=4&meter_ids[]=0&page=1&pageSize=1'
    scan_interval: 300
    headers:
      Authorization: !secret givenergy_apikey
      Accept: "application/json"
      Content-Type: "application/json"
    sensor:
      - name: "GivEnergy EV Energy"
        unique_id: givenergy_ev_energy
        value_template: '{{ value_json.data[0].measurements[0].value }}'
        device_class: 'energy'
        state_class: 'total_increasing'
        unit_of_measurement: 'Wh'
  - resource_template: 'https://api.givenergy.cloud/v1/ev-charger/{{ states("sensor.givenergy_ev_uuid") }}/commands/change-mode/'
    scan_interval: 15
    headers:
      Authorization: !secret givenergy_apikey
      Accept: "application/json"
      Content-Type: "application/json"
    sensor:
      - name: "GivEnergy EV Mode"
        unique_id: givenergy_ev_mode
        value_template: >-
            {% if value_json.data[0].active %}
              Solar
            {% elif value_json.data[1].active %}
              Hybrid
            {% elif value_json.data[2].active %}
              Grid
            {% else %}
              Unknown
            {% endif %}
  - resource_template: 'https://api.givenergy.cloud/v1/ev-charger/{{ states("sensor.givenergy_ev_uuid") }}/commands/set-plug-and-go/'
    scan_interval: 15
    headers:
      Authorization: !secret givenergy_apikey
      Accept: "application/json"
      Content-Type: "application/json"
    binary_sensor:
      - name: "GivEnergy EV Plug And Go State"
        unique_id: givenergy_ev_plugandgo_state
        value_template: '{{ value_json.data.value }}'
  - resource_template: 'https://api.givenergy.cloud/v1/ev-charger/{{ states("sensor.givenergy_ev_uuid") }}/commands/enable-front-panel-led/'
    scan_interval: 15
    headers:
      Authorization: !secret givenergy_apikey
      Accept: "application/json"
      Content-Type: "application/json"
    binary_sensor:
      - name: "GivEnergy EV LED State"
        unique_id: givenergy_ev_led_state
        value_template: '{{ value_json.data.value }}'

rest_command:
  givenergy_ev_setmode:
    url: 'https://api.givenergy.cloud/v1/ev-charger/{{ states("sensor.givenergy_ev_uuid") }}/commands/change-mode'
    method: POST
    headers:
      Authorization: !secret givenergy_apikey
      Accept: "application/json"
      Content-Type: "application/json"
    payload: '{"mode": "{{ mode }}"}'
  givenergy_ev_setplugandgo:
    url: 'https://api.givenergy.cloud/v1/ev-charger/{{ states("sensor.givenergy_ev_uuid") }}/commands/set-plug-and-go/'
    method: POST
    headers:
      Authorization: !secret givenergy_apikey
      Accept: "application/json"
      Content-Type: "application/json"
    payload: '{"enabled": {{ enabled }}}'
  givenergy_ev_startcharge:
    url: 'https://api.givenergy.cloud/v1/ev-charger/{{ states("sensor.givenergy_ev_uuid") }}/commands/start-charge'
    method: POST
    headers:
      Authorization: !secret givenergy_apikey
      Accept: "application/json"
      Content-Type: "application/json"
  givenergy_ev_stopcharge:
    url: 'https://api.givenergy.cloud/v1/ev-charger/{{ states("sensor.givenergy_ev_uuid") }}/commands/stop-charge'
    method: POST
    headers:
      Authorization: !secret givenergy_apikey
      Accept: "application/json"
      Content-Type: "application/json"
  givenergy_ev_leds:
    url: 'https://api.givenergy.cloud/v1/ev-charger/{{ states("sensor.givenergy_ev_uuid") }}/commands/enable-front-panel-led/'
    method: POST
    headers:
      Authorization: !secret givenergy_apikey
      Accept: "application/json"
      Content-Type: "application/json"
    payload: '{"value": {{ value }}}'

switch:
  - platform: template
    switches:
      givenergy_ev_mode_hybrid:
        friendly_name: "GivEnergy EV Mode: Hybrid"
        value_template: "{{ is_state('sensor.givenergy_ev_mode', 'Hybrid') }}"
        turn_on:
          service: rest_command.givenergy_ev_setmode
          data:
            mode: Eco
        turn_off:
          service: rest_command.givenergy_ev_setmode
          data:
            mode: Eco
      givenergy_ev_mode_solar:
        friendly_name: "GivEnergy EV Mode: Solar"
        value_template: "{{ is_state('sensor.givenergy_ev_mode', 'Solar') }}"
        turn_on:
          service: rest_command.givenergy_ev_setmode
          data:
            mode: SuperEco
        turn_off:
          service: rest_command.givenergy_ev_setmode
          data:
            mode: SuperEco
      givenergy_ev_mode_grid:
        friendly_name: "GivEnergy EV Mode: Grid"
        value_template: "{{ is_state('sensor.givenergy_ev_mode', 'Grid') }}"
        turn_on:
          service: rest_command.givenergy_ev_setmode
          data:
            mode: Boost
        turn_off:
          service: rest_command.givenergy_ev_setmode
          data:
            mode: Boost
      givenergy_ev_plugandgo:
        friendly_name: "GivEnergy EV Plug&Go"
        value_template: "{{ is_state('binary_sensor.givenergy_ev_plug_and_go_state', 'on') }}"
        turn_on:
          service: rest_command.givenergy_ev_setplugandgo
          data:
            enabled: "true"
        turn_off:
          service: rest_command.givenergy_ev_setplugandgo
          data:
            enabled: "false"
      givenergy_ev_chargingstopstart:
        friendly_name: "GivEnergy EV Charging Stop/Start"
        value_template: "{{ is_state('sensor.givenergy_ev_status', 'Charging') }}"
        turn_on:
          service: rest_command.givenergy_ev_startcharge
          data: {}
        turn_off:
          service: rest_command.givenergy_ev_stopcharge
          data: {}
      givenergy_ev_leds:
        friendly_name: "GivEnergy EV LEDs"
        value_template: "{{ is_state('binary_sensor.givenergy_ev_led_state', 'on') }}"
        turn_on:
          service: rest_command.givenergy_ev_leds
          data:
            value: "1"
        turn_off:
          service: rest_command.givenergy_ev_leds
          data:
            value: "0"

template:
  binary_sensor:
    - name: "GivEnergy EV Charger Connected"
      state: >-
        {% if is_state('sensor.givenergy_ev_status','Preparing') %}true
        {%  elif is_state('sensor.givenergy_ev_status','Charging') %}true
        {%  elif is_state('sensor.givenergy_ev_status','SuspendedEVSE') %}true
        {%  elif is_state('sensor.givenergy_ev_status','SuspendedEV') %}true
        {%  elif is_state('sensor.givenergy_ev_status','Finishing') %}true
        {% endif %}

Save the file and restart Home Assistant to apply.

Step 4: Add the entities to the dashboard

Now you’ve created your entities, you’ll probably want to see the data / control things conveniently on your dashboard. You can of course arrange things however you like, but as a quick way to get you started, add a card of type ‘Entities’, switch to YAML view and paste in the following over the top of the default placeholder text:

type: entities
entities:
  - entity: switch.givenergy_ev_plugandgo
  - entity: binary_sensor.givenergy_ev_plug_and_go_state
  - entity: switch.givenergy_ev_mode_solar
  - entity: switch.givenergy_ev_mode_hybrid
  - entity: switch.givenergy_ev_mode_grid
  - entity: sensor.givenergy_ev_mode
  - entity: sensor.givenergy_ev_status
  - entity: binary_sensor.givenergy_ev_charger_connected
  - entity: switch.givenergy_ev_chargingstopstart
  - entity: sensor.givenergy_ev_energy
  - entity: sensor.givenergy_ev_power
  - entity: sensor.givenergy_ev_power_watts
  - entity: binary_sensor.givenergy_ev_led_state
  - entity: switch.givenergy_ev_leds

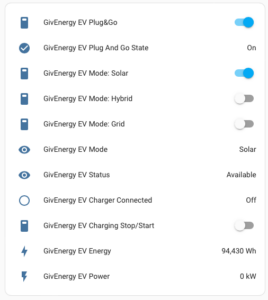

Save the card and dashboard and you should see lots of controls and sensors.

One thing you youโ€™ll need to be aware of is that the sensors only update every 15 seconds in order to keep API calls to a minimum, so when you toggle a switch it could take up to 15 seconds to register. The switch might look like it turned off on its own for a few seconds, but itโ€™ll jump back again once the API confirms it has worked.
